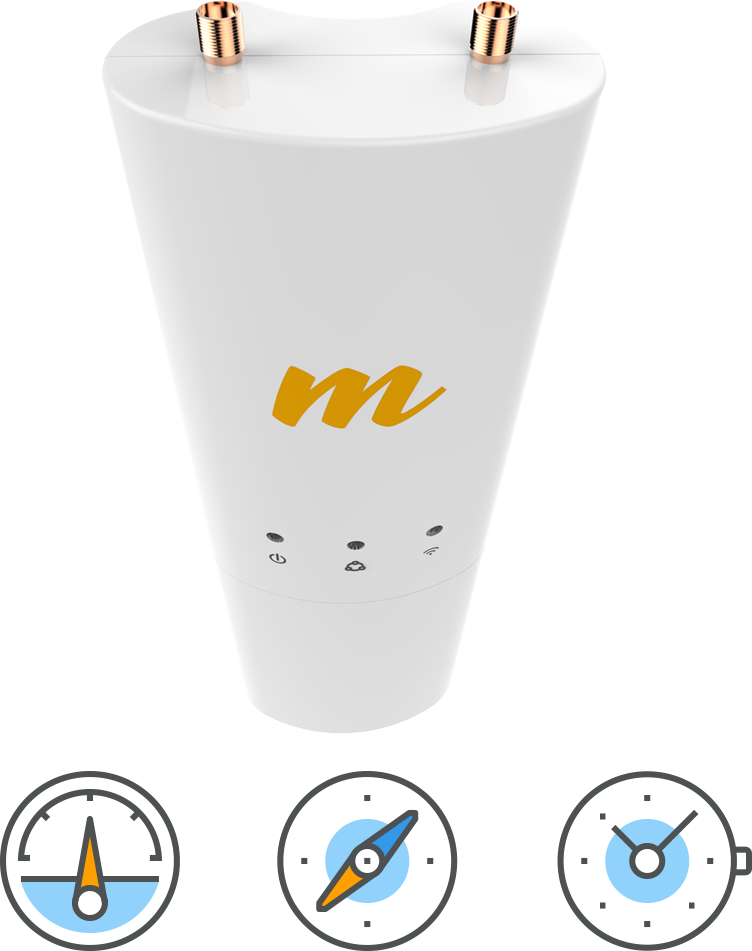

5Ghz Mimosa C5c Connectorized

Kart İle Serbest Ödeme Banka Hesap Numaraları Garanti Sorgu Havale Bildirimi 0 262 644 66 63

Satış Fiyatı	5,737.71₺

Performance
Max Throughput	500+ Mbps IP (866 Mbps PHY)
Wireless Protocols	WiFi Interop Mimosa SRS
Modes	PTMP Client PTP Backhaul
MIMO & Modulation	2x2:2 MIMO OFDM up to 256 QAM
Bandwidth*	20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop
Frequency Range	PTMP: 4900-6200 MHz PTP: 4900-6400 MHz Restricted by country of operation new US/FCC 5600-5650 MHz support FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power	27 dBm
Sensitivity ( MCS 0 )	-87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz
Max Power Consumption	9.2 W
System Power Method	Passive PoE (24-56 VDC) ( Kutu içerisinde mevcut değildir .)
PoE Power Supply	Passive POE compliant, 48-56 V
Dimensions	Depth 44 mm (1.73") Width 65 mm (2.56") Height 188.4 mm (7.42")
Weight	295 grams (10.4 oz)
Mounting	Single pole strap
Connector Type	RP-SMA (x2)

Performance

Max Throughput

500+ Mbps IP (866 Mbps PHY)

Wireless Protocols

WiFi Interop
Mimosa SRS

Modes

PTMP Client
PTP Backhaul

Radio

MIMO & Modulation

2x2:2 MIMO OFDM up to 256 QAM

Bandwidth*

20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;
Tunable to standard WiFi channels for WiFi Interop

Frequency Range

PTMP: 4900-6200 MHz
PTP: 4900-6400 MHz
Restricted by country of operation
*new* US/FCC 5600-5650 MHz support
FCC DFS (U-NII-2a, U-NII-2c) availability pending certification

Max Output Power

27 dBm

Sensitivity ( MCS 0 )

-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz

Power

Max Power Consumption

9.2 W

System Power Method

Passive PoE (24-56 VDC) ( Kutu içerisinde mevcut değildir .)

PoE Power Supply

Passive POE compliant, 48-56 V

Physical

Dimensions

Depth 44 mm (1.73")
Width 65 mm (2.56")
Height 188.4 mm (7.42")

Weight

295 grams (10.4 oz)

Mounting

Single pole strap

Connector Type

RP-SMA (x2)

Environmental
Outdoor Ingress Protection Rating	IP55
Operating Temperature	-40°C to +55°C (-40°F to 131°F)
Operating Humidity	5 to 100% condensing
Operating Altitude	4420 m (14501') maximum
Shock & Vibration	ETS 300-019-2-4 class 4M5
Gigabit Ethernet	10/100/1000-BASE-T
Multi-User MIMO**	CPE is MU-MIMO-capable
Management Services	Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management	Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use
Security	WPA2 + Mimosa 802.1x Client**
QoS	Supports 4 pre-configured QoS levels
Approvals	FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
RoHS Compliance	Yes
Safety	UL/EC/EN/ 60950-1 + CSA-22.2

Environmental

Outdoor Ingress Protection Rating

IP55

Operating Temperature

-40°C to +55°C (-40°F to 131°F)

Operating Humidity

5 to 100% condensing

Operating Altitude

4420 m (14501') maximum

Shock & Vibration

ETS 300-019-2-4 class 4M5

Features

Gigabit Ethernet

10/100/1000-BASE-T

Multi-User MIMO**

CPE is MU-MIMO-capable

Management Services

Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI

Smart Spectrum Management

Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use

Security

WPA2 + Mimosa 802.1x Client**

QoS

Supports 4 pre-configured QoS levels

Regulatory + Compliance

Approvals

FCC Part 15.407 and Part 90Y, IC RSS210,
CE, ETSI 301 893/302 502

RoHS Compliance

Yes

Safety

UL/EC/EN/ 60950-1 + CSA-22.2

Ethernet Portu(10/100/1000)	1
Kanal Genişliği	20/40/80 Mhz
Maksimum Güç Tüketimi	12.9W
Non-Blocking Kapasitesi	700 Mbps
Sertifikasyon	FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502
Çalışma Sıcaklığı	-40°C to +55°C

DC Giriş Voltajı	48-56 V
Frekans	4.9GHz - 6.4GHz
MIMO	2x2:2 MIMO OFDM up to 256-QAM
Maksimum Çıkış Gücü	27 dBm
RoHS Uyumluluğu	Var
Çalışma Nem Aralığı	5 to 100%
Şok ve Vibrasyon Sertifikası	ETS 300-019-2-4 class 4M5

Ürün Özellikleri
Ürün Özellikleri	Mimosa-C5C	Mimosa-B11	Mimosa-B24	Mimosa-C5x	Mimosa-C5x-IP67	Mimosa-A5x
Boyutları	-	-	-	-	-	188.4 mm x 75 mm x 44 mm
DC Giriş Voltajı	48-56 V	48 V DC 802.3 at	48 V DC 802.3 at	24-56 V	-	-
Ethernet Portu(10/100/1000)	1	1	1	1	-	1
Frekans	4.9GHz - 6.4GHz	10GHz - 11.7GHz	24.00–24.25 GHz	4.9GHz - 6.4GHz	-	-
Frekans Aralığı	-	-	-	-	-	4.9-6.4 GHz
Kablosuz Güvenlik	-	-	-	-	-	WPA2; AES
Kanal Genişliği	20/40/80 Mhz	20/40/80 Mhz	20/40/80 Mhz	20/40/80 Mhz	-	20/40/80 Mhz
Konnektör	-	-	-	Mimosa N5-X twist-on	-	(2) RP-SMA
MIMO	2x2:2 MIMO OFDM up to 256-QAM	4x4:4 MIMO OFDM up to 256QAM	4x4:4 MIMO OFDM up to 256QAM	2x2:2 MIMO OFDM up to 256-QAM	-	-
Maksimum Güç Tüketimi	12.9W	30W	19.5W	12.9W	-	-
Maksimum Çıkış Gücü	27 dBm	27 dBm	-	27 dBm	-	27 dBm
Non-Blocking Kapasitesi	700 Mbps	1.7 Gbps	1.5 Gbps	700 Mbps	-	-
RoHS Uyumluluğu	Var	Var	Var	Var	-	-
SFP Portu	-	1	1	-	-	-
Sertifikasyon	FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502	FCC Part 101 and EN 302 217, RoHS, UL/EC/EN/ 60950-1 + CSA-22.2	FCC 15.249 IC RSS210 ETSI EN 300-440 V2.1.1 CE	FCC Part 15 Class B EN 55022 Class B IEC61000 UL/IEC 60950-2 IEC/EN 60905-1	-	-
Total Non-Blocking Throughput	-	-	-	-	-	700 Mbps
Çalışma Nem Aralığı	5 to 100%	5 to 100%	5 to 100%	5 to 100%	-	-
Çalışma Sıcaklığı	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-	-40°C to +55°C
Şok ve Vibrasyon Sertifikası	ETS 300-019-2-4 class 4M5	ETS 300-019-2-4 class 4M5	ETS 300-019-2-4 class 4M5	ETS 300-019-2-4 class 4M5	-	ETS 300-019-2-4 class 4M5

Mimosa-B5C MIMOSA B5C Connectorized 1Gbit PTP Backhaul	Ürün No : U862	19,341.30₺ + KDV
Mimosa-C5x 4.9-6.4 GHz , 8 dBi Modular Radio, For PTMP or PTP, uses N5-X Antenna	Ürün No : U1050	4,833.59₺ + KDV
Mimosa-N5-X12 N5-X12 4.9-6.4 GHz Modular Twist-on Antenna, 70mm Horn for C5x only, 12 dBi gain	Ürün No : U1051	752.16₺ + KDV
Mimosa-N5-X16 N5-X16 4.9-6.4 GHz Modular Twist-on Antenna, 150mm Horn for C5x only, 16 dBi gain	Ürün No : U1052	1,217.79₺ + KDV
Mimosa-N5-X20 N5-X20 4.9-6.4 GHz Modular Twist-on Antenna, 250mm Dish for C5x only, 20 dBi gain	Ürün No : U1053	1,755.04₺ + KDV
Mimosa-N5-X25 N5-X25 4.9-6.4 GHz Modular Twist-on Antenna, 400mm Dish for C5x only, 25 dBi gain	Ürün No : U1054	2,077.40₺ + KDV
