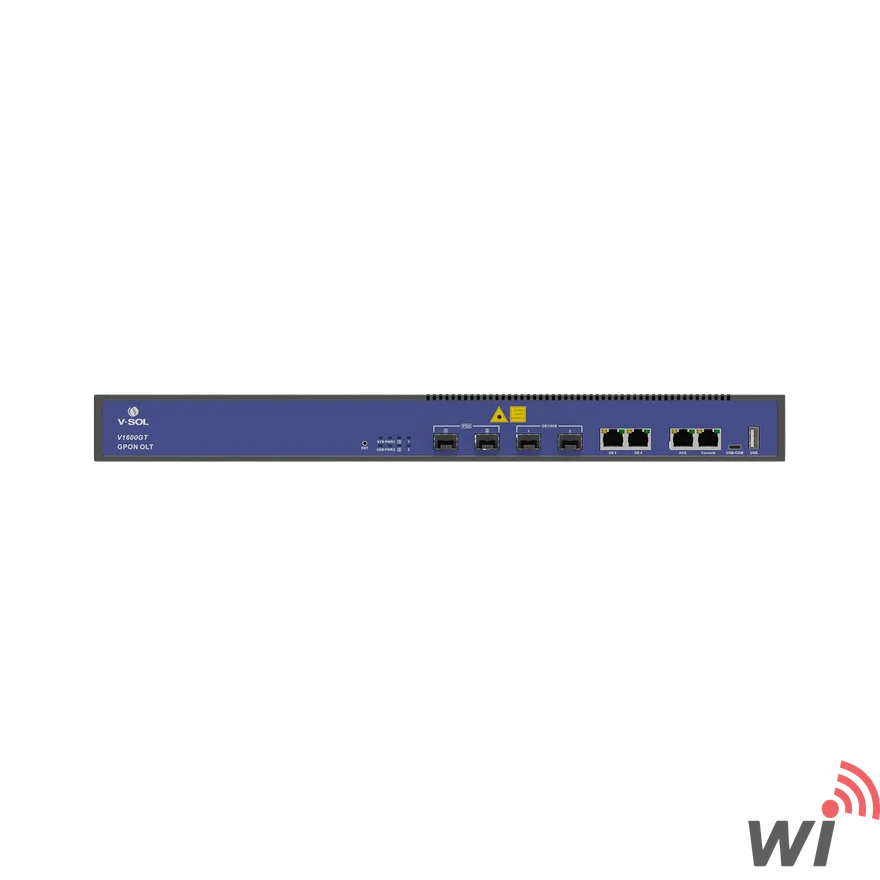

VSOL - 2 PORT - OLT , FTTX , SFP+

GPON OLT V1600GT

V1600GT, seyrek nüfuslu/uzak/maliyet hassasiyeti yüksek bölgeler, akıllı sanayi parkları, ticari binalar ve FTTM gibi senaryolara uygun, esnek ve hızlı FTTx erişimi sağlayan, iki GPON portuna sahip kutu tipi bir GPON OLT'dir.

Teknik Özellikler;

Chassis;

• Rack 1U 19Inch Standard Box
  Uplink Port;

• QTY: 4

• RJ45(GE): 2

• SFP(GE)/SFP+(10GE): 2
  GPON Port;

• QTY: 2

• Physical Interface: SFP Slots

• Supported PON module level: Class C++/Class C+++/Class C++++

• Max splitting ratio: 1:128

• Management Ports: 1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB-COM, 1*USB2.0

• Backplane Bandwidth (Gbps): 208

• Port Forwarding Rate(Mpps): 40.176
  PON Port Specification (Class C+++);

• Transmission Distance: 20KM

• PON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps

• Wavelength: TX 1490nm, RX 1310nm

• Connector: SC/UPC

• Fiber Type: 9/125μm SMF

• TX Power: +4.5~+10dBm

• Rx Sensitivity: ≤ -30dBm

• Saturation Optical Power: -12dBm


Power Supply;

AC: Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
DC: Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V
Management Mode:  WEB , Telnet , CLI
